Change System Sounds on Windows 7 (Including Startup)

Tuesday, February 7, 2012 posted by CSch

This article will deal with two aspects: handling the regular sounds which are accessible in Control Panel as well as changing the system startup sound, which is hidden inside a .dll file and quite tricky to get at.
The regular sounds can be accessed by entering the Control Panel and browsing to Control Panel\Hardware and Sound\Sounds\Change system sounds. A window with selectible sound schemes will open where you can either select a premade scheme or browse your files to choose other .wav files and save a custom scheme. The checkbox below the list already indicates that you will not find the Startup sound in it - you will need third party software for that.

The reason for this requirement is that the startup sound isn't configurable by "normal" means - it is hidden inside a .dll file, C:\Windows\System32\imageres.dll. Before you make any changes to it, make a backup-copy of it to some safe place and also one on your desktop to work with. Afterwards, download a resource hacker - these tools are used to access the data inside .dll files which can be sound files as well as icons and other things. I prefer ResEdit since it does not need an installation. You can download it here:

http://www.resedit.net/

In ResEdit, open the copy of imageres.dll you saved to your desktop.

On the left Resources column, find the "WAVE" entry - there is exactly one file in there, which has different names depending on your system language - I'm using American English, which is why it's called 5080 here (replace any occurance of that number here with the one you have for your language). To be able to import your own sound, it also must be in the .wav format and must be called the same as the file you just found.
Now delete the 5080 entry in ResEdit - right-click it and choose Remove from project. Then right-click on some empty space in the Resource column and select Add Resource... > User Definded. A window pops up - select Name identifier and type in WAVE. Now browse the sound file you want to configure as startup sound and hit Open (I don't know the maximum size of the file you can use, you might try to keep it as small as possible - it worked for me with a file size of ~90kb, others have reported more). It will have the wrong name and language defined after you import it, so you have to change that: Right-click the entry and select Rename. Leave the Ordinal identifier checked and enter 5080 into the identifier box, then select the correct language for you (Englisch (United States) if you had 5080) and hit OK. Afterwards save the file in ResEdit.

Now comes the tricky bit which is replacing the imageres.dll in your System32 folder with the one you edited. If you try to just do it, Windows will most likely hit you with the Permission-Denied-club, no matter how many administrative rights you have got. People have reported that it worked for them in save mode. A save option however is to boot off a Linux Live CD (I used Linux Mint 12 Lisa) and replace the file in the Live environment.

Therefore, just download a CD image file from here or any other Linux distribution's homepage, burn it onto a bootable CD and boot from it.

You will boot into the Live environment, from which you can test and install Linux or if you need, fix stuff on your Windows installation. I will go on with the instructions assuming you chose Linux Mint 12 from the link I provided, if you chose differently you will likely know how to accomplish the next steps on your system.

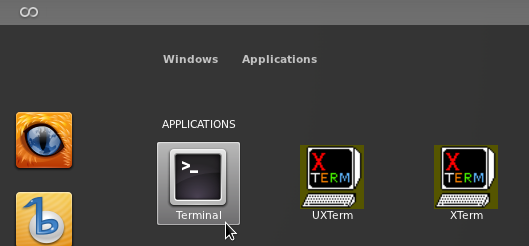

To replace the file, hover your cursor to the top left corner of the screen - an overlay will pop up. Type in terminal and open the first object of the list appearing:

This is the command line and will be needed in a few moments. Hover to the top left corner again and click on the nautilus icon on the left to open a new file manager window:

On the appearing window, have a look at the left column - there are different (or only one) drives listed, you should be able to determine your Windows system drive by its size or contents. Click on it once to show them. What is important now is the value that is shown on the window decoration on top of the window, circled in red here:

You basically need only the first few characters. Now go back to the terminal you opened and enter

sudo su -

to grant yourself administrative rights. Next, you do the copying. For that, use the following command. You can use the tab-key to autocomplete the path segments, so you don't have to write out the whole value from above. Replace my username with yours and weirdvalue with the drive's value:

cp -f /media/weirdvalue/Users/howtoforge/Desktop/imageres.dll /media/weirdvalue/Windows/System32

The file is now replaced and you can reboot, removing the CD when told to. If you encounter problems with the new imageres.dll, just repeat the process and copy the backup you made to the System32 folder instead.

Be Sociable, Share!



2 Responses to “Change System Sounds on Windows 7 (Including Startup)”

  1. requirment of sound scheme for one laptop

  2. Christian M√ľnster says:

    good entry. I like your Resource editor better.

    Alternative:
    Instead of the whole LIVE Linux, burning DVD’s, rebooting and clickity-click; You could start a CMD and write the following:

    Takeown /f C:WindowsSystem32imageres.dll

    CACLS C:WindowsSystem32imageres.dll /e /p :f

    Finally:

    Copy imageres.dll C:WindowsSystem32

    This way you can store any custom imageres.dll and then just run a script for the novice user.
